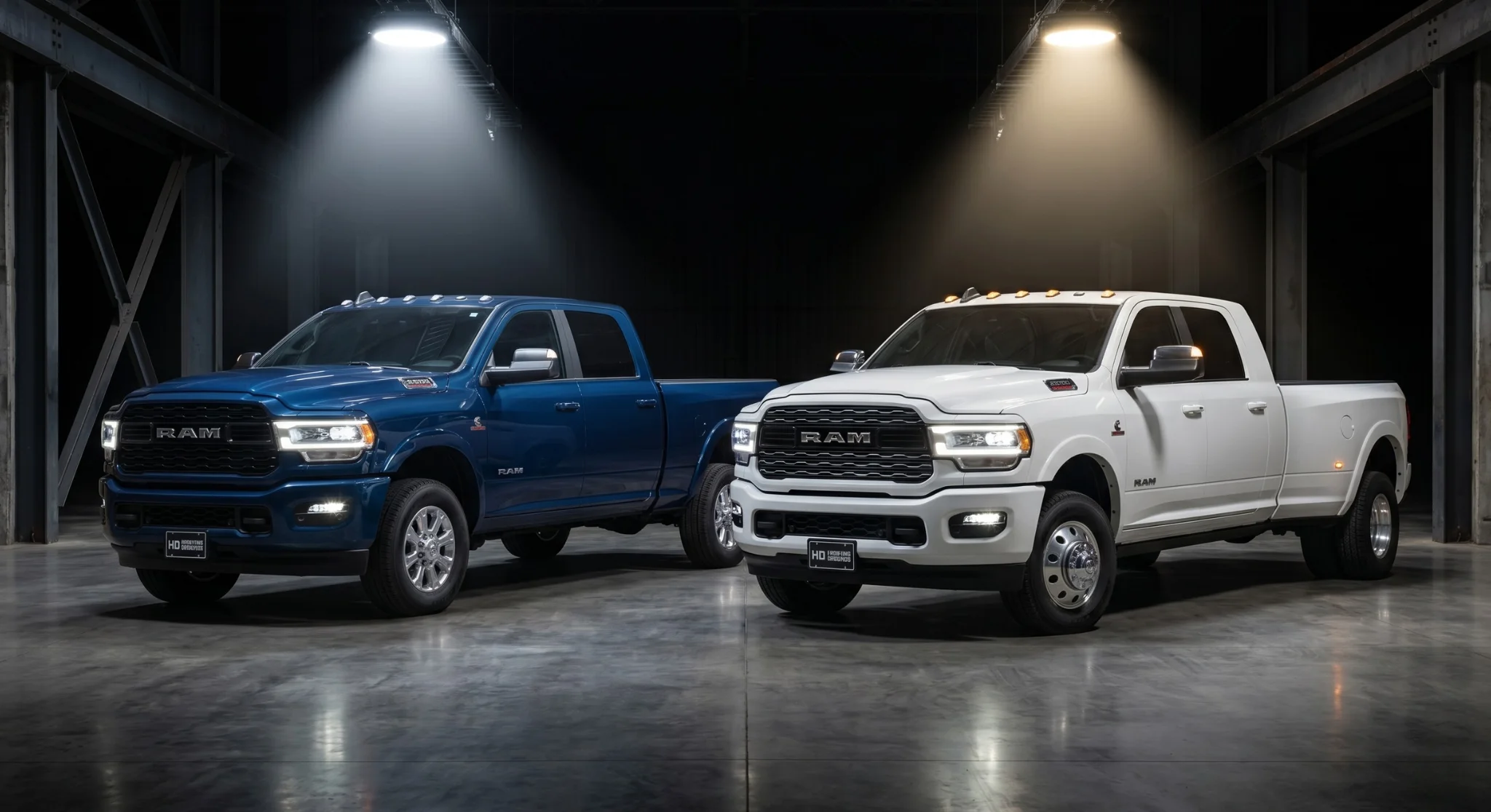

2026 Ram 2500 vs. 2026 Ram 3500: Which Heavy-Duty Ram Is Right for You?
The 2026 Ram 2500 and Ram 3500 share the same cabs, the same two engines, the same 8-speed transmission, and the same infotainment — yet they are engineered for different jobs. The 2500 leans toward ride comfort and everyday usability, while the 3500 is built first for maximum payload and trailer weight. This comparison breaks down the verified differences so you can match the truck to the work.
Both trucks are available now at Victorville Motors, 14617 Civic Dr in Victorville, serving Hesperia, Apple Valley, Phelan, Adelanto, and the surrounding High Desert. Compare them in our new Ram 2500 inventory and new Ram 3500 inventory, or dig deeper into the lineup on our 2026 Ram 2500 overview.
Engines and Performance
Both trucks offer the same powertrain menu. The standard 6.4L HEMI V8 produces 405 horsepower and 429 lb-ft of torque. The available 6.7L Cummins High-Output Turbo Diesel I6 delivers 430 horsepower and a best-in-class available 1,075 lb-ft of torque, up 10 horsepower from the prior year. Both pair with the TorqueFlite HD eight-speed automatic.
Because the engines are identical across both trucks, raw power is not the deciding factor — how that power is harnessed for towing and payload is. That comes down to frame, axles, suspension, and wheel configuration.
| Engine & Performance | 2026 Ram 2500 | 2026 Ram 3500 |
|---|---|---|
| Standard engine | 6.4L HEMI V8 | 6.4L HEMI V8 |
| Standard output | 405 hp / 429 lb-ft | 405 hp / 429 lb-ft |
| Available engine | 6.7L Cummins HO Turbo Diesel I6 | 6.7L Cummins HO Turbo Diesel I6 |
| Available output | 430 hp / 1,075 lb-ft | 430 hp / 1,075 lb-ft |
| Transmission | TorqueFlite HD 8-speed automatic | TorqueFlite HD 8-speed automatic |
Towing, Payload, and Weight Ratings
This is where the two trucks diverge most. The 2500 tops out at 20,000 pounds of towing when properly equipped with the Cummins diesel — more than enough for most large trailers, campers, and boats. The 3500 climbs to 36,610 pounds, but only in a specific configuration: Cummins HO diesel, dual rear wheels, Crew Cab with the 8-foot bed, 4×4, and the 3.42 axle. Payload follows the same pattern, with the 3500’s dually architecture and higher weight ratings letting it carry roughly twice what the 2500 can.
The single biggest mechanical separator is the dual-rear-wheel (dually) option, which is exclusive to the 3500. It is what unlocks the highest towing and payload numbers and provides the stability that heavy gooseneck and fifth-wheel loads demand.
| Capability | 2026 Ram 2500 | 2026 Ram 3500 |
|---|---|---|
| Max towing (properly equipped) | Up to 20,000 lb | Up to 36,610 lb |
| Max payload (properly equipped) | Up to 4,580 lb | Up to 7,590 lb |
| Rear wheel configuration | Single rear wheel (SRW) | SRW or dual rear wheel (DRW) |
| Standard hitch receiver | Class V (20,000 lb) | Class V (23,000 lb) |
| Max GVWR | Up to approx. 11,040 lb | Up to 14,000 lb |
| Max GCWR | Up to approx. 30,550 lb | Up to 45,000 lb |
Maximum towing and payload capacity figures are based on properly equipped vehicles and vary by configuration. Do not exceed any weight rating. See your owner’s manual and the vehicle’s door-jamb label for specific capacities.
Ride and Suspension
The 2500 uses a class-exclusive five-link coil rear suspension that delivers a noticeably smoother unladen ride, closer to a light-duty truck when the bed is empty. The 3500 uses a leaf-spring rear setup engineered to handle heavier sustained loads, with available rear air suspension for load leveling. The tradeoff is real and well documented: coils ride better empty, while leaf springs settle better under heavy tongue weight.
In practice, if your regular towing stays under 20,000 pounds and the truck doubles as a daily driver, the 2500’s coil-link suspension is the more comfortable choice. Once you are routinely pulling gooseneck or fifth-wheel loads above 20,000 pounds, the 3500’s leaf springs and dually option are built for it.
| Configuration | 2026 Ram 2500 | 2026 Ram 3500 |
|---|---|---|
| Rear suspension | Class-exclusive 5-link coil | Leaf spring (available rear air) |
| Best unladen ride | Smoother | Stiffer when empty |
| Best under heavy load | Capable to 20,000 lb | Built for maximum load |
| Cab styles | Regular, Crew, Mega Cab | Regular, Crew, Mega Cab |
| Front suspension | Three-link with coil springs | Three-link with coil springs |
| Bed lengths | 6’4″ or 8′ | 6’4″ or 8′ |
| Seating capacity (max) | Up to 6 (Crew/Mega Cab) | Up to 6 (Crew/Mega Cab) |
| Max fuel tank (available) | 50 gal (Crew Cab 8′ box) | 50 gal (Crew Cab 8′ box) |
Technology and Interior
The two trucks share their technology suite. Both come standard with an 8.4-inch Uconnect 5 touchscreen and offer an available screen up to 14.5 inches, with standard wireless Apple CarPlay and wireless Android Auto. Upper trims on both trucks can be equipped with the class-exclusive 10.25-inch Front Passenger Interactive Display, a class-exclusive dual wireless charging setup, and available premium audio. Because the cabins are shared, technology is not a 2500-versus-3500 decision — it is a trim-level decision within whichever truck you choose.
| Technology | 2026 Ram 2500 | 2026 Ram 3500 |
|---|---|---|
| Standard touchscreen | 8.4-in Uconnect 5 | 8.4-in Uconnect 5 |
| Available touchscreen | Up to 14.5-in | Up to 14.5-in |
| Apple CarPlay / Android Auto | Wireless, standard | Wireless, standard |
| Front Passenger Interactive Display | Available 10.25-in (upper trims) | Available 10.25-in (upper trims) |
| Driver information display | 3.5-in standard; 7-in or 12-in available | 3.5-in standard; 7-in or 12-in available |
| Premium audio (available) | 17-speaker Surround Sound | 17-speaker Surround Sound |
| Dual wireless charging pads | Available (upper trims) | Available (upper trims) |
Warranty Coverage
Both the Ram 2500 and Ram 3500 carry identical factory warranty coverage. Diesel-equipped HD trucks receive a longer powertrain term than gas models, and select 2026 Rams add an extended 10-year/100,000-mile powertrain limited warranty for the original owner.
| Coverage | 2026 Ram 2500 & Ram 3500 (identical) |
|---|---|
| Basic limited | 3 years / 36,000 miles |
| Powertrain (gas) | 5 years / 60,000 miles |
| Powertrain (diesel) | 5 years / 100,000 miles |
| Corrosion (rust-through perforation) | 5 years / unlimited miles |
| Roadside assistance | 5 years / 60,000 miles |
| Extended powertrain (original owner, select 2026 models) | 10 years / 100,000 miles |
This information is provided for general educational purposes only and does not constitute legal advice. Warranty coverage depends on the specific terms of your vehicle’s warranty agreement. Consult your owner’s manual or a qualified legal professional for guidance on your individual situation.
Trims and Pricing
The 2500 offers the broader lineup — nine trims, including off-road-focused models the 3500 does not offer (Power Wagon and Rebel) and two value-oriented additions new for 2026: the Black Express appearance package and the off-road-leaning Warlock, which adds a limited-slip rear differential, Bilstein shock absorbers, a transfer-case skid plate, and 20-inch wheels wrapped in 34-inch all-terrain tires.
The 3500 runs a focused five-trim lineup oriented toward work and towing capability. Stepping from a 2500 to the equivalent 3500 trim is a standardized walk-up of about $1,200.
| 2026 Ram 2500 | 2026 Ram 3500 | |
|---|---|---|
| Starting MSRP (before destination) | $45,995 | $47,195 |
| Number of trims | 9 | 5 |
| Trim lineup | Tradesman, Black Express, Big Horn, Warlock, Laramie, Rebel, Power Wagon, Limited, Limited Longhorn | Tradesman, Big Horn, Laramie, Limited, Limited Longhorn |
| Off-road specials | Warlock, Rebel, Power Wagon | — |
| Dually (DRW) availability | — | Available |
Manufacturer’s Suggested Retail Price (MSRP) for new vehicles includes manufacturer and distributor options and delivery, process and handling fees, which may be subject to change at any time. MSRP excludes taxes, title, license and dealer installed options, accessories, fees and charges. MSRP is not the dealer advertised price. Dealer price will vary. The dealer sets the final price.
The Verdict: Match the Truck to the Job
Both trucks are excellent — the right one depends entirely on how you use it.
Choose the Ram 2500 if…
You want the smoother daily ride from the class-exclusive coil-link suspension, your towing needs stay at or under 20,000 pounds, or you want access to off-road trims like the Warlock, Rebel, or Power Wagon that the 3500 does not offer. It is the more versatile pick for buyers who split time between work and everyday driving.
Choose the Ram 3500 if…
You regularly tow above 20,000 pounds, need maximum payload up to 7,590 pounds, or want the dual-rear-wheel configuration for stability under heavy gooseneck and fifth-wheel loads. It is the truck for commercial-grade hauling and the heaviest jobs.
The honest deciding question: will you ever routinely tow beyond 20,000 pounds or run a dually? If yes, step up to the 3500. If not, the 2500 covers the work with better everyday manners.
